RunCam Split 2 1080P 60FPS HD Recording, WDR FPV Camera w/ Wifi Module and NEW RC25G LENS (Orange)

RunCam Split 2 1080P 60FPS HD Recording, WDR FPV Camera w/ Wifi Module and NEW RC25G LENS (Orange)
RunCam Split 2 1080P 60FPS HD Recording, WDR FPV Camera w/ Wifi Module and NEW RC25G LENS (Orange)
RunCam Split 2 1080P 60FPS HD Recording, WDR FPV Camera w/ Wifi Module and NEW RC25G LENS (Orange)
RunCam Split 2 1080P 60FPS HD Recording, WDR FPV Camera w/ Wifi Module and NEW RC25G LENS (Orange)
RunCam Split 2 1080P 60FPS HD Recording, WDR FPV Camera w/ Wifi Module and NEW RC25G LENS (Orange)
Click for larger image

Our PriceUS$75.99
CodeRUNCAM-SPLIT2-ORG-G2

The RunCam Split 2 HD / FPV Camera with WiFi module. A dual purpose camera for FPV flight and HD 1080P/60 recording.

Features

  • Can be used for FPV flying while recording 1080p60fps and totally replace yourFPV camera.
  • Latency is as low as the RunCam Eagle
  • Connect the Split directly to a VTX so it works just like a FPV camera.
  • PCB board can be stacked on top of the FC/PDB, allowing for protection inside your airframe
  • No more HD camera mounting on top of the frame needed! Saves you 70g, COG is also more centralized.
  • Included WiFi module for wireless settings control via phone app.

Specifications

Parameters
FOV Angle of Field FPV FOV 130° / Recording FOV 165°
Video Resolution 1080@60fps / 1080@30fps / 720@60fps
Video Files MOV
Image Resolution 2 Megapixels
TV Output NTSC (720*480) / PAL (720*576) Switchable
Real-Time Audio Output Yes
Interface Micro USB / UART
Max Micro SD Card Supported 64G(need Class 6 or above, recommend Class 10/UHS-I/UHS-II)
WiFi Module Support (Removable)
Dimensions PCB 38*38mm / Lens Module 22*20mm
Power Input DC 5-17V/DC 5V(USB)
Working Current 650mA @5V / 270mA @12V
Weight 21g/23g(Plus Wifi Module)



Instruction diagram
RunCam Split 2

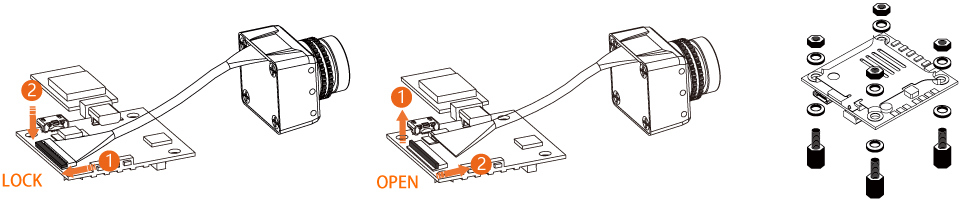

Installation Diagram
RunCam Split 2

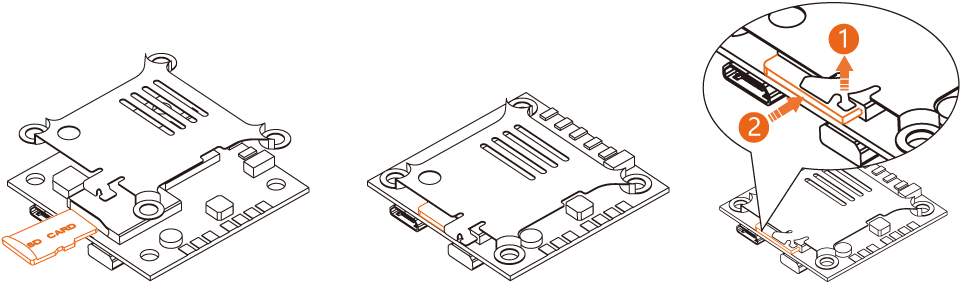

MicroSD card installation
RunCam Split 2
Unit of length:mm
RunCam Split 2 RunCam Split 2
